1. Product Description:

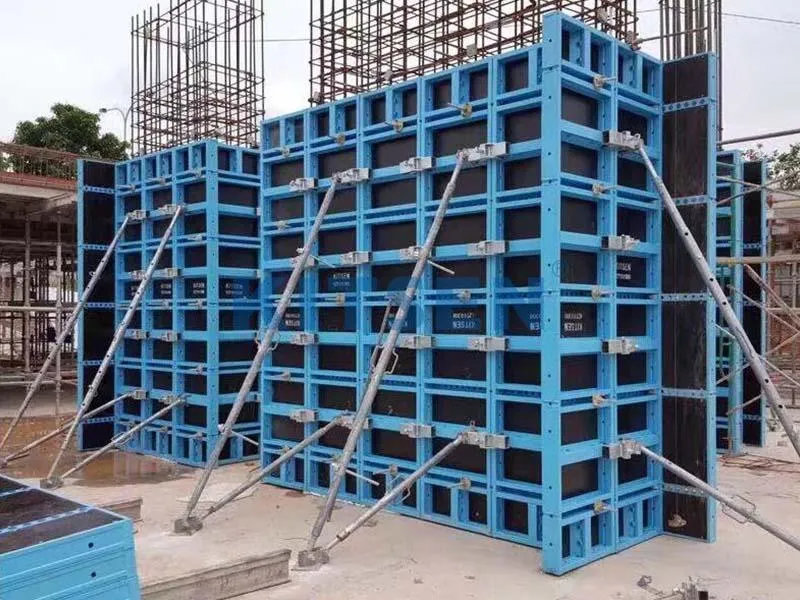

Light and robust wall and column formwork designed to minimize the number of components and improve site and yard efficiency. The all aluminum frame reduces the weight of the panels, while its high strength combined with 12mm Birch plywood, can resist concrete pressures up to 60KN/m2. The panel clamps guarantee effective and quick connection of panels. Versatile wall and column formwork is a complete system with fixed and hinged corners which allow the formation of any wall shapes on site.

2. Product Parameters:

Product Name: K100 Wall &Column Formwork

Material: Aluminum Alloy 6061-T6 + Birch Plywood

Panel Weight：8.3-43kg;average 23kg/m².

Standard Height: 2.4m;1.2m;0.9m;0.6m-also available at 3m&3.3m

Standard Width: 0.9m; 0.6m; 0.45; 0.3m--also job-specific sizes acceptable.

Allowable Concrete Pressure:60KN/m²
