Description

Specifications of Aluminum Formwork



aluminum-formwork

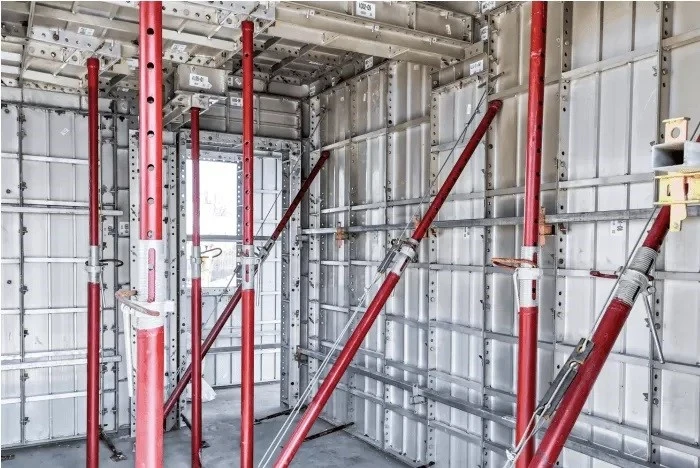

Aluminum Formwork is a revolutionary building system made primarily of aluminum alloy profiles. It is widely used in modern construction due to its superior properties such as lightweight, high strength, and excellent recyclability. This system is ideal for various concrete structure projects, including residential buildings, commercial complexes, bridges, and more.











Product Features

Lightweight and Easy to Handle: The aluminum formwork is significantly lighter than traditional wood or steel formwork, making it easier to transport and install. This reduces labor costs and increases efficiency.

High Load Capacity: With a load-bearing capacity typically reaching 60KN per square meter, aluminum formwork meets the demands of most residential building projects.

Excellent Durability: Aluminum formwork is highly resistant to rust and corrosion, ensuring a long lifespan and the ability to be reused between 200 to 500 times.

High Construction Efficiency: The installation and dismantling process is straightforward and doesn't require heavy machinery. This leads to shorter construction cycles, typically reducing project duration by 30%.

Standardization and Versatility: The components are highly standardized and can be freely combined to fit different structural sizes and shapes.

High-Precision Concrete Forming: The aluminum formwork system ensures high precision in concrete forming, resulting in smooth surfaces that often eliminate the need for plastering.

Technical Specifications

Material: High-strength aluminum alloy

Weight: Approximately 20-25 kg per square meter

Reuse Rate: 200-500 times

Load Capacity: Up to 60KN per square meter

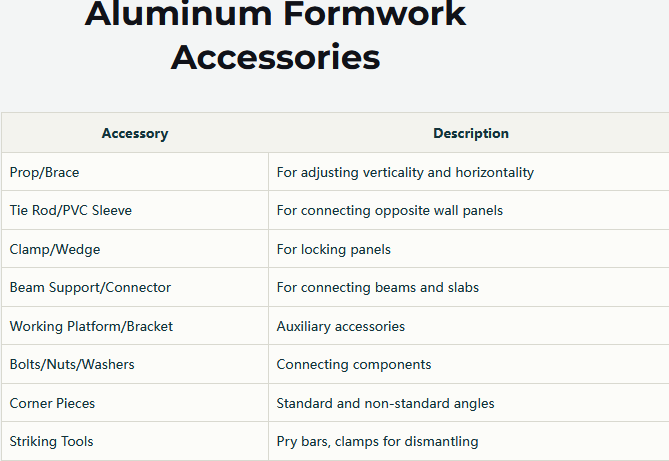

2025829143353327

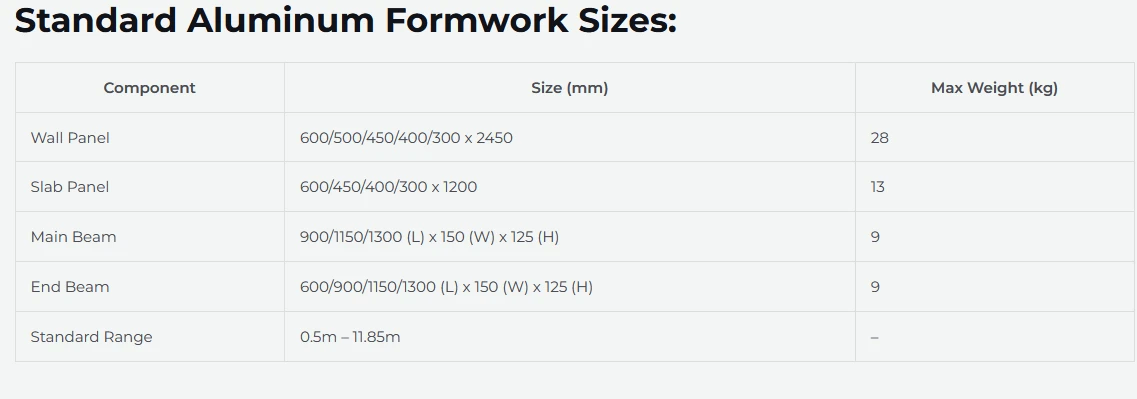

2025829143417748
